500 Series - Panel - Pro Kit

• Our 500 Series is crafted in the USA with lightweight and durable powder coated aluminium, offering superior strength and performance. Suitable for larger bow/cabin spaces or recreational jet boats wanting to heat the front seats effectively.

Technical Specifications

• Amperage: Low 2.5, Med 3.5, High 4.5
• Maximum estimated BTU/h: 28,000
• Air flow: Low 230 cfm, Med 248 cfm, High 263 cfm.
• Hose barb: 5/8"
• Installation manual

Pro Kit Includes:

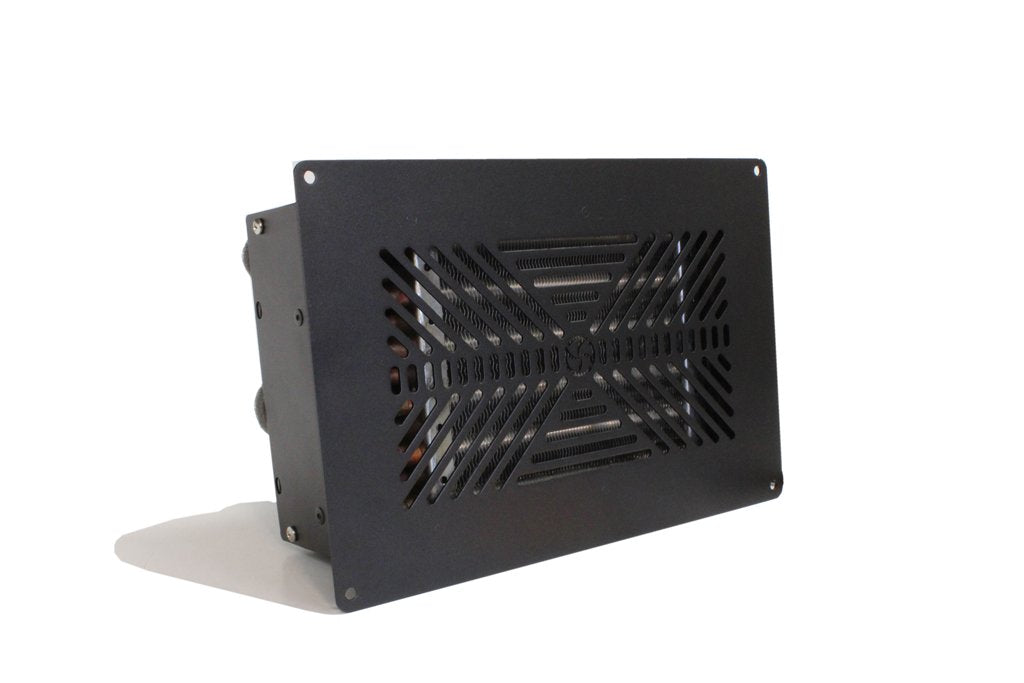

• One 12V Flush Mount Heater Unit (Grill Face Black) w/wire 6' harness
• One High Low switch with indicator assembly
• Hardware Kit
• 50 ft Heater Hose
• One Low Idle "Y"
• Universal installation kit

Unit Dimensions: 7.45 H x 11.3 W | 190mm H x 287mm W Grill Size
Unit Size/Cut Out: 9 3/8 H x 6 1/2 W x 8.6 D | 238mm H x 165mm x 219mm H
