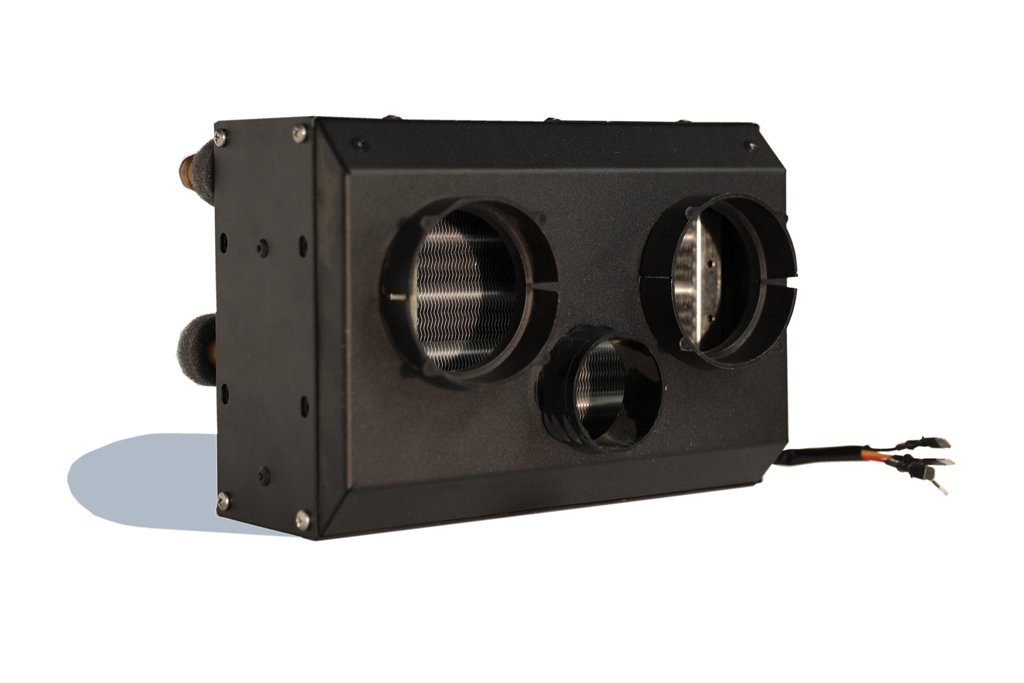

The 230 version of the 200 Series includes a smaller additional outlet - refer to image.
The 230 series is made in the USA with durable aluminium construction and powder coated for extra protection against marine environments.
This size heater is ideal for smaller boats with two/three seats - ideal for boats with a bench seat suitable for three seats. Also ideal for larger boats for heating the front seats only with the addition of a Hot Tube for direct heat.
Technical Specifications
12 Volt 163
28,000 BTU
12 V Amperage: Low 4.4, Med 5.8, High 8.5
Air flow: Low 230 cfm, Med 248 cfm, High 260 cfm.
Hose barb: 5/8"

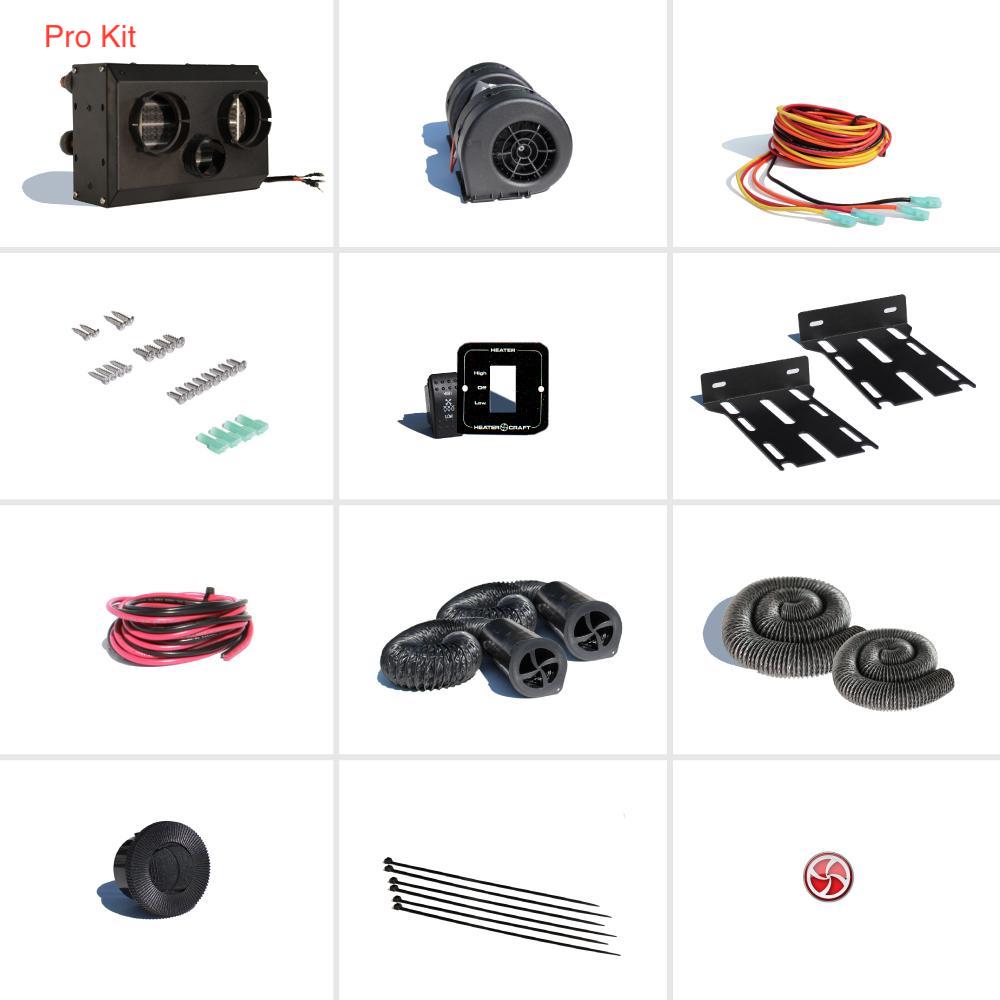

Pro Kit Includes
One Heater Unit with wire 6' harness
One High/Low switch
3" Vent hose (6 ft per vent)
One 3" fixed euro vent
One Hot Tube Gen 1
Universal mounting brackets & screws
40 feet of heater hose
One low idle "Y"
2 Brass fittings with clamps
Unit Dimensions:
9.4”W x 6.4”H x 8.6”D | 239mm W x 163mm H x 219mm (without mounting brackets)
